  • PM-1616-N

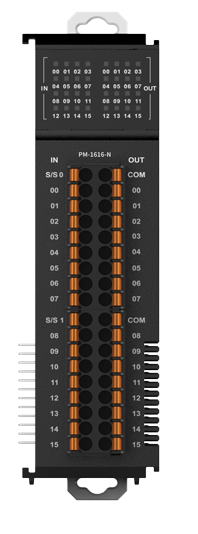

PM-1616-N

16 digital inputs, NPN/PNP input type, and 16 digital outputs, NPN output type, push-in terminal

List Price： $ 199.00
Online Special Price： $ 199.00
Add to Cart

Description

Specifications

Downloads

16 digital inputs, NPN/PNP input type, and 16 digital outputs, NPN output type, push-in terminal

Technical Data
Mechanical
Technical Data
ModelPM-1616-N   Digital Input & Output Module
Channel16 inputs and 16   outputs
OFF to ON   (Input)>15VDC, 1.5mA or   above
ON to   OFF(Input)<5VDC, 1.0mA or   below
Output voltage5-25VDC
Output Current500mA/channel
Input/Output   Frequency10kHz
ON/OFF   Response Time20µs/50µs
Input TypeNPN/PNP
Output TypeNPN
Input   Resistance(max)4.7kΩ
Input   ProtectionOptocoupler   isolation, Interference Filter
Output   ProtectionOptocoupler   isolation, short circuit and over current protection
Common1 common per 8 output   channels
TerminalPush-in
Dimension111.92*30.9*101.5mm
InstallationStandard DIN rail
OthersIndicator LEDs   corresponding to each input channel

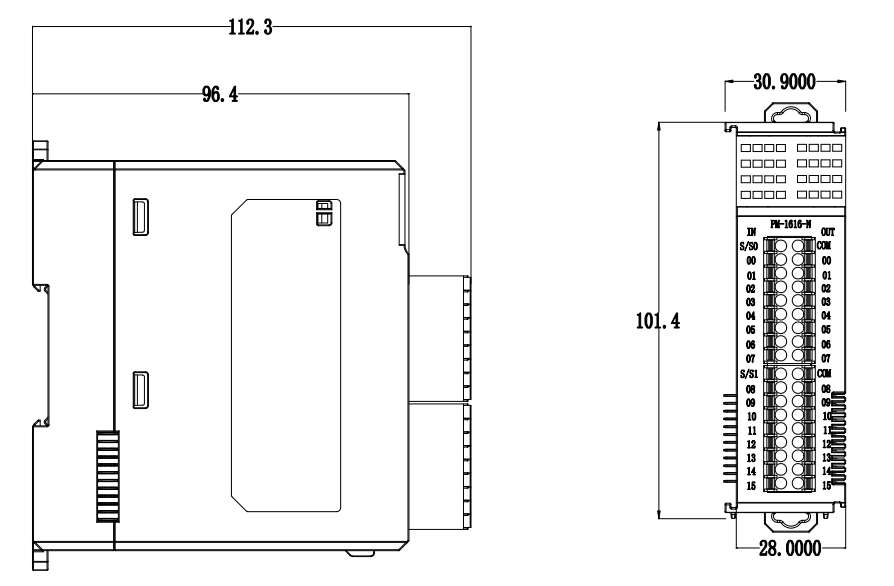

Mechanical
