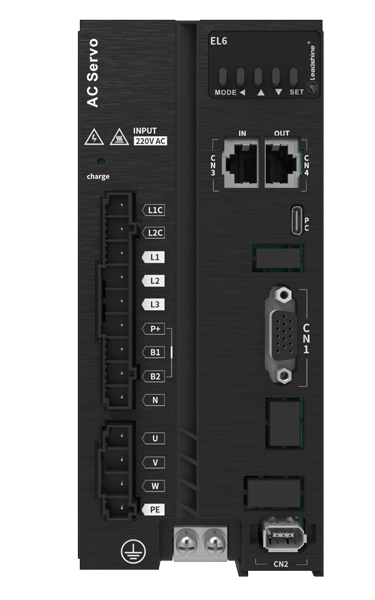

EL6-RS1500P
Product Category

EL6-RS1500P

  • Servo drive power rating: 1500W

  • User-configurable I/Os: 8 DI, 5 DO

  • Pulse input: High speed – 4MHz, Low speed – 200kHz (24V), 500kHz(5V)

  • Equipped with internal regenerative resistor

  • Position, velocity, torque and hybrid loop control

  • Servo functions including Zero Tracking Control (ZTC), vibration suppression, friction compensation, 16 configurable PR paths and easy servo tunings

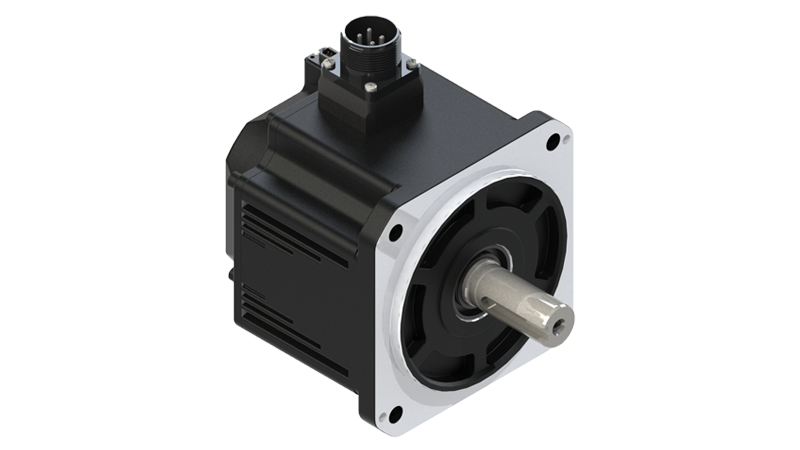

  • Matching motors with power rating from 30W to 1500W

  • Motors with 23-bit magnetic/optical encoders

  • Optional holding brake

List Price: $ 199.00
Online Special Price: $ 199.00

EL6-RS Series AC Servo Product is a whole new economical AC servo drivers and motors product range that we have proudly

developed at Leadshine Technology Co.,Ltd. This product series provides more in demanded functionalities and control.

While designing this AC servo drive series with cost concerns in mind, this product series doesn't compromise in term

of performance and functions.


EL6-RS Series AC Servo Drive comes with power rating from 400W up to 2000W which supports Modbus communication

protocol in addition to  pulse + direction input control.


EL6-RS series AC Servo Drive is equipped with easy servo tuning (One-click Tuning/ Single Parameter Tuning),

Zero Tracking Control (ZTC), vibration suppression and many more. This AC servo drive series also comes with new

AC servo motors with 23-bit optical/magnetic encoder which offers better accuracy and stability.


Technical Data
ModelEL6-RS1500P
Input Voltage220VAC   1ph/3ph
Rated Power   (W)1500
Rated Current (Arms)9.5
Peak Current (Arms)28.5
Command   SourceModbus   RTU/Pulse+Direction
# of Inputs8
# of Outputs5


Mechanical
